※ 产品执行标准Production enforce standard
|
产品规范
Product
Specification
|
设计规范
Design Spec
|
结构长度
Face to Face
|
连接法兰
Flange End
|
试验与检验
Test＆Check
|
产品标识
Marking
|
供货规范
Supply
|
|
GB/T12237
JB/T7745
|
GB/T12221
JB/T7745
|
JB/T79
|
JB/T9092
|
GB/T12220
|
JB/T7928
|
|
APl608
APl6D
|
ANSIB16.10
APl6D
|
ANSI B16.5
|
APl598
APl 6D
|
MSS SP-25
APl6D
|
APl608
APl 6D
|
※ 产品性能规范 Chief property and specification 单位Unit:MPa
|
公称压力（PN）Nominal pressure
|
1.6
|
2.5
|
4.0
|
6.4
|
150Lb
|
300Lb
|
400 Lb
|
600Lb
|
|
壳体实验压力Shell test pressure
|
2.4
|
3.8
|
6.0
|
9.6
|
3.1
|
7.8
|
9.7
|
15.3
|
|
密封试验（液）Seal test
|
1.8
|
2.8
|
4.4
|
7.0
|
2.3
|
5.6
|
7.1
|
11.2
|
|
密封试验（气）Seal test
|
0.5～0.7
|
|
适用介质
Applicable medium
|
C
水、油品
Water ,oil
|
P R
硝酸类 醋酸类
Nitric acid Acetic acid
|
|
适用温度 Applicable temperature
|
Nyion≤ 80℃ 、 PTFE≤ 150℃ 、 R-PTFE≤ 180℃ 、PPL≤ 320℃
|
| |
|
|
|
|
|
|
|
|
|
※ 主要零件材料Material for main parts
|
名称Parts
|
WCB类
|
CF8类
|
CF3类
|
CF 8M 类
|
CF 3M 类
|
|
阀体左体Body＆Body cap
|
A216-WCB
|
A351-CF8
|
A351-CF3
|
A351-CFBM
|
A251-CF 3M
|
|
球体
Ball
|
B2-B8
B8以上
|
A182-F 6a
|
A182-F 304L
|
A182-F 304L
|
A182-F316
|
A182-F 316L
|
|
A216-WCB
|
A351-CF8
|
A351-CF3
|
A351-CFBM
|
A251-CF 3M
|
|
阀杆Steml
|
A182-F 6a
|
A182-F304
|
A182-F 304L
|
A182-F316
|
A182-F 316L
|
|
阀座Sest
|
PTFE/增强PTFE/NYLIN PTFE/Reinforced PTFE/Nyion
|
|
阀座支承圈Seat Retainer
|
A105
|
A182-F304
|
A182-F 304L
|
A182-F316
|
A182-F 316L
|
|
弹簧Spring
|
|
3yc-7/17-49H
|
|
O型圈O-ring
|
NBR
|
氟橡胶Viton
|
|
螺柱Stud
|
A193-B7
|
A193-B8
|
|
螺母Nut
|
A194-2H
|
A194-8
|
| |
|
|
|
|
|
|
|
|
|

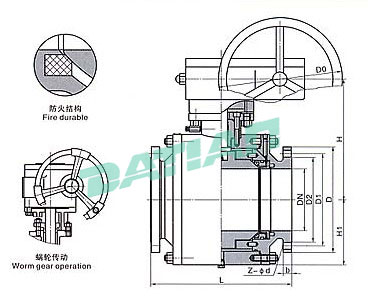

※ 主要外形和连接尺寸Main External and Connection Dimension 单位unit:mm
CLASS 150
|
DN
|
d
|
L
|
LB焊接
Welding
|
H1
|
H2
|
W
|
D2
|
D1
|
D
|
N-Φ
|
b
|
f
|
WT
(Kg)
|
备注
Remark
|
|
1/2″
|
13
|
108
|
-
|
-
|
59
|
130
|
35
|
60.5
|
89
|
4-16
|
11.2
|
1.6
|
2.3
|
浮动球
Float
Ball
|
|
3/4″
|
19
|
117
|
-
|
-
|
63
|
130
|
43
|
70
|
98
|
4-16
|
11.2
|
1.6
|
3.0
|
|
1″
|
25
|
127
|
-
|
-
|
75
|
160
|
51
|
79.5
|
108
|
4-16
|
11.2
|
1.6
|
4.5
|
|
11/2″
|
38
|
165
|
190
|
-
|
95
|
230
|
73
|
98.5
|
127
|
4-16
|
14.3
|
1.6
|
7.0
|
|
2″
|
51
|
178
|
216
|
-
|
107
|
230
|
92
|
120.5
|
152
|
4-19
|
15.9
|
1.6
|
9.5
|
固定球
Fixing
Ball
浮动球
Float
Ball
|
|
21/2″
|
61
|
190
|
241
|
-
|
142
|
400
|
105
|
139.5
|
178
|
4-19
|
17.5
|
1.6
|
15.0
|
|
3″
|
76
|
203
|
283
|
-
|
152
|
400
|
127
|
152.5
|
190
|
4-19
|
19.1
|
1.6
|
19.0
|
|
4″
|
102
|
229
|
305
|
-
|
178
|
700
|
157
|
190.5
|
229
|
8-19
|
23.9
|
1.6
|
33.0
|
|
5″
|
127
|
356
|
-
|
-
|
252
|
1100
|
186
|
216
|
254
|
8-22
|
23.9
|
1.6
|
58.0
|
|
6″
|
52
|
394
|
457
|
-
|
272
|
1100
|
216
|
241.5
|
279
|
8-22
|
54.5
|
1.6
|
93.0
|
|
8″
|
203
|
457
|
521
|
-
|
342
|
1500
|
270
|
298.5
|
343
|
8-22
|
58.6
|
1.6
|
160.0
|
|
8″
|
203
|
457
|
521
|
-
|
398
|
600
|
270
|
298.5
|
343
|
8-22
|
28.6
|
1.6
|
180.0
|
固定球
Fixing
Ball
|
|
10″
|
254
|
553
|
559
|
335
|
495
|
600
|
324
|
362
|
406
|
12-25
|
30.2
|
1.6
|
240.0
|
|
12″
|
305
|
610
|
635
|
385
|
580
|
800
|
381
|
431.8
|
482.6
|
12-25
|
31.8
|
1.6
|
390.0
|
|
14″
|
337
|
686
|
762
|
430
|
325
|
800
|
412.8
|
176
|
535
|
12-29
|
35
|
1.6
|
510.0
|
|
16″
|
387
|
162
|
838
|
470
|
720
|
800
|
469.9
|
539.5
|
597
|
12-29
|
36.6
|
1.6
|
750.0
|
|
20″
|
489
|
914
|
991
|
590
|
840
|
800
|
58.2
|
635
|
698
|
20-32
|
42.9
|
1.6
|
1190
|
|
24″
|
591
|
1067
|
1143
|
700
|
1050
|
800
|
692.2
|
749.5
|
813
|
20-35
|
47.8
|
1.6
|
2100
|
|
26″
|
686
|
1245
|
1346
|
780
|
1150
|
800
|
800.1
|
836.6
|
927.1
|
28-35
|
71.4
|
1.6
|
3000
|
CLASS 300
|
DN
|
d
|
L
|
LB焊接
Welding
|
H1
|
H2
|
W
|
D2
|
D1
|
D
|
N-Φ
|
b
|
f
|
WT
(Kg)
|
备注
Remark
|
|
1/2″
|
13
|
140
|
-
|
-
|
59
|
130
|
35
|
66.5
|
95
|
4-16
|
14.2
|
1.6
|
2.5
|
浮动球
Float
Ball
|
|
3/4″
|
19
|
152
|
-
|
-
|
63
|
130
|
43
|
82.5
|
117
|
4-19
|
15.9
|
1.6
|
3.5
|
|
1″
|
25
|
165
|
-
|
-
|
75
|
160
|
51
|
89
|
124
|
4-19
|
17.5
|
1.6
|
5.5
|
|
11/2″
|
38
|
190
|
190
|
-
|
95
|
230
|
73
|
114.5
|
156
|
4-22
|
20.7
|
1.6
|
10.5
|
|
2″
|
51
|
216
|
216
|
-
|
107
|
230
|
92
|
127
|
165
|
8-19
|
22.3
|
1.6
|
14.5
|
固定球
Fixing
Ball
浮动球
Float
Ball
|
|
21/2″
|
61
|
241
|
241
|
-
|
142
|
400
|
105
|
149
|
190
|
8-22
|
25.4
|
1.6
|
23.5
|
|
3″
|
76
|
283
|
283
|
-
|
152
|
400
|
127
|
168
|
210
|
8-22
|
28.6
|
1.6
|
30.0
|
|
4″
|
102
|
305
|
305
|
-
|
178
|
700
|
157
|
200
|
254
|
8-22
|
31.8
|
1.6
|
55.0
|
|
5″
|
127
|
381
|
-
|
-
|
252
|
1100
|
186
|
235
|
279
|
8-22
|
35
|
1.6
|
81.0
|
|
6″
|
52
|
403
|
457
|
-
|
272
|
1100
|
216
|
270
|
318
|
12-22
|
36.5
|
1.6
|
118.0
|
|
8″
|
203
|
502
|
521
|
-
|
342
|
1500
|
270
|
330
|
381
|
12-25
|
41.3
|
1.6
|
200.00
|
|
8″
|
203
|
502
|
521
|
-
|
398
|
600
|
270
|
330
|
381
|
12-25
|
41.3
|
1.6
|
220.2
|
固定球
Fixing
Ball
|
|
10″
|
254
|
568
|
559
|
335
|
495
|
600
|
324
|
387.5
|
444
|
16-29
|
17.7
|
1.6
|
365
|
|
12″
|
305
|
648
|
635
|
385
|
580
|
800
|
381
|
451
|
520.8
|
16-32
|
50.8
|
1.6
|
530
|
|
14″
|
337
|
762
|
762
|
430
|
325
|
800
|
412.8
|
514.5
|
584.2
|
20-32
|
53.8
|
1.6
|
740
|
|
16″
|
387
|
838
|
838
|
470
|
720
|
800
|
469.9
|
571.5
|
647.8
|
20-35
|
57.2
|
1.6
|
1030
|
|
20″
|
489
|
991
|
991
|
590
|
840
|
800
|
58.2
|
685.8
|
774.8
|
24-35
|
63.5
|
1.6
|
1540
|
|
24″
|
591
|
1143
|
1143
|
700
|
1050
|
800
|
692.2
|
812.8
|
914.4
|
24-41
|
69.8
|
1.6
|
2600
|
|
28″
|
686
|
1346
|
1346
|
780
|
1150
|
800
|
800.1
|
939.8
|
1035
|
28-44.5
|
85.9
|
1.6
|
3900
|
※主要外形和连接尺寸 Main External and Connection Dimension 单位unit:mm
CLASS 400
|
DN
|
d
|
L
|
LB焊接
Welding
|
H1
|
H2
|
W
|
D2
|
D1
|
D
|
N-Φ
|
b
|
f
|
WT
(Kg)
|
备注
Remark
|
|
1/2″
|
13
|
165
|
160
|
-
|
59
|
130
|
35
|
66.5
|
95
|
4-16
|
14.3
|
6.4
|
6.5
|
浮动球
Float
Ball
|
|
3/4″
|
19
|
190
|
190
|
-
|
63
|
160
|
43
|
82.5
|
117
|
4-19
|
15.9
|
6.4
|
9
|
|
1″
|
25
|
216
|
216
|
-
|
75
|
160
|
51
|
89
|
124
|
4-19
|
17.5
|
6.4
|
13
|
|
11/2″
|
38
|
241
|
241
|
-
|
95
|
230
|
73
|
114.5
|
156
|
4-22
|
22.3
|
6.4
|
16.5
|
|
2″
|
51
|
292
|
292
|
-
|
107
|
700
|
92
|
127
|
165
|
8-19
|
25.4
|
6.4
|
25
|
固定球
Fixing
Ball
浮动球
FloatBall
|
|
4″
|
102
|
406
|
406
|
-
|
178
|
700
|
157.2
|
200
|
254
|
8-25
|
35
|
6.4
|
66
|
|
6″
|
152
|
495
|
495
|
250
|
300
|
600
|
216
|
270
|
317.5
|
12-25
|
41
|
6.4
|
145
|
|
8″
|
203
|
597
|
597
|
294
|
374
|
800
|
269.8
|
330
|
381
|
12-28.5
|
47.8
|
6.4
|
250
|
固定球
Fixing
Ball
|
|
10″
|
254
|
673
|
673
|
370
|
445
|
800
|
324
|
387.5
|
445
|
16-32
|
53.8
|
6.4
|
540
|
|
12″
|
305
|
762
|
762
|
420
|
515
|
800
|
381
|
451
|
521
|
16-35
|
57
|
6.4
|
780
|
|
14″
|
337
|
826
|
826
|
460
|
550
|
800
|
413
|
514.5
|
584
|
20-35
|
60.5
|
6.4
|
1000
|
|
16″
|
387
|
902
|
902
|
505
|
615
|
800
|
470
|
571.5
|
648
|
20-38
|
63.5
|
6.4
|
1300
|
|
20″
|
489
|
1054
|
1054
|
630
|
810
|
800
|
584.2
|
686
|
775
|
24-41
|
69.8
|
6.4
|
2100
|
|
24″
|
591
|
1232
|
1232
|
685
|
845
|
800
|
692.2
|
812.8
|
915
|
24-48
|
76
|
6.4
|
3400
|
|
28″
|
686
|
1397
|
1397
|
860
|
1087
|
800
|
800
|
939.8
|
1035
|
28-51
|
95.3
|
6.4
|
5000
|
※主要外形和连接尺寸 Main External and Connection Dimension 单位unit:mm
CLASS 600
|
DN
|
d
|
L
|
LB焊接
Welding
|
H1
|
H2
|
W
|
D2
|
D1
|
D
|
N-Φ
|
b
|
f
|
WT
(Kg)
|
备注
Remark
|
|
1/2″
|
13
|
165
|
165
|
-
|
59
|
160
|
35
|
56.5
|
95
|
4-16
|
14.3
|
6.4
|
7.5
|
浮动球
Float
Ball
|
|
3/4″
|
19
|
190
|
190
|
-
|
63
|
160
|
43
|
82.5
|
117
|
4-19
|
15.9
|
6.4
|
10.5
|
|
1″
|
25
|
216
|
216
|
-
|
75
|
230
|
51
|
89
|
124
|
4-19
|
17.5
|
6.4
|
14.5
|
|
11/2″
|
38
|
241
|
241
|
-
|
95
|
400
|
73
|
114.5
|
156
|
4-22
|
22.3
|
6.4
|
18.5
|
|
2″
|
51
|
292
|
292
|
-
|
107
|
700
|
92
|
127
|
165
|
8-19
|
25.4
|
6.4
|
25
|
固定球
Fixing
Ball
浮动球
FloatBall
|
|
4″
|
102
|
432
|
432
|
-
|
178
|
1100
|
157.2
|
216
|
273
|
8-25
|
38
|
6.4
|
76
|
|
6″
|
152
|
559
|
559
|
250
|
300
|
600
|
216
|
282.1
|
355.6
|
12-29
|
47.2
|
6.4
|
127
|
|
8″
|
203
|
660
|
660
|
294
|
374
|
800
|
269.8
|
349.2
|
419.5
|
12-32
|
55.7
|
6.4
|
350
|
固定球
Fixing
Ball
|
|
10″
|
254
|
787
|
787
|
370
|
445
|
800
|
324
|
431.8
|
508
|
16-35
|
63.5
|
6.4
|
660
|
|
12″
|
305
|
838
|
838
|
420
|
515
|
800
|
381
|
489
|
559
|
20-35
|
66.5
|
6.4
|
820
|
|
14″
|
337
|
889
|
889
|
460
|
550
|
800
|
413
|
527
|
603.2
|
20-38
|
69.8
|
6.4
|
1130
|
|
16″
|
387
|
991
|
991
|
505
|
615
|
800
|
470
|
603.2
|
686
|
20-41
|
76.2
|
6.4
|
1550
|
|
20″
|
489
|
1194
|
1194
|
630
|
810
|
800
|
584.2
|
724
|
818
|
24-44.5
|
89
|
6.4
|
2800
|
|
24″
|
591
|
1397
|
1397
|
825
|
1010
|
800
|
692.2
|
83802
|
940
|
24-51
|
101.6
|
6.4
|
5300
|
|
28″
|
686
|
1549
|
1549
|
970
|
1180
|
800
|
800
|
965.2
|
1073
|
28-55
|
111.3
|
6.4
|
6500
|
|
