产品介绍

RCE-Y电液动安全复位执行机构
发布厂商:瑞拓江南自控设备

详细参数

RCE-SR 系列执行机构是在电源故障以及恶劣条件下使用的执行机构

Remote Control 具有40年的制造高质量执行机构的历史。我们所面临的挑战就是执行机构在恶劣条件下的功能和安全性。RCE-SR 是一个具有弹簧复位的电液动执行机构。该系列执行机构是由电动机来操作,同时该系列执行机构是具有侧装手轮的防爆产品。

该套产品能够安装一个消防装置以确保在高温下执行器不出现故障。测试显示该系列执行机构能够在250摄氏度的高温下正常运行1小时。在严酷的条件下该系列产品具有防火性操作,因而使其具备了高效的安全性。当突然断电时,阀门可在复位弹簧的作用下实现快开或快关。并不复杂的设计,优良的性能,高效的安全性,最少的维护是该系列产品的最大优点。

曼谷地铁对执行机构要求极高的安全性

当今社会,地铁是一个城市的基础建设。世界上许多地铁事故的发生对阀门的安全性提出了更加尖锐的要求。其中一个最重要的问题是如何阻止火与烟的扩散。在紧急情况下快速而安全的阻止火源的扩散从而提高个体的安全性,同时也有助于救援队开展工作。

英格兰的Howden Calidair是曼谷地铁设施工程的提供商,他们选择了RCE-SR系列产品用于防火装置。

该系列执行机构有3个最优良的因素:  电动执行机构,弹簧复位装置保障了安全性,即在断电情况下实现快速关闭。

该系列执行机构能够在250℃的条件下连续工作一个小时。

从开到关只需10-20秒。

该系列执行机构适于安装在ISO标准的阀门上,有多种型号。根据尺寸大小,可实现接近10000牛米的大扭矩力。


The actuator which manages power failures and tough situations
Remote Control has for 40 years manufactured high-quality actuators. Part of the challenges is to develop solutions for situations where extremely high demands are made on function and safety.

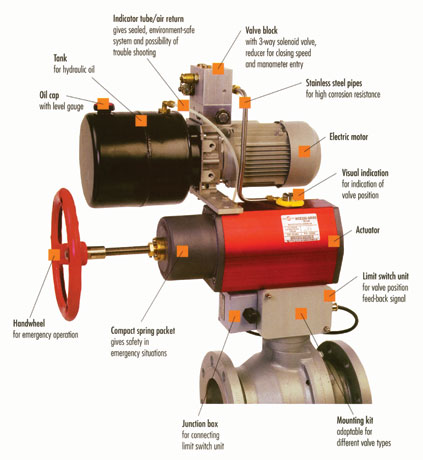

RCE-SR is an electro-hydraulic actuator with spring return. The actuator is operated by an electric motor.RCE-SR is also available in explosion-proof design and with manual override.The unit can be enclosed in a fire protection jacket which ensures faultless function for the actuator even in high temperatures. Tests show that the actuator will endure up to +250℃ for one hour.

High operational safety in tough conditions makes the RCE-SR perfectly suitable for fire damper operation. During power cuts, the valve is controlled by the return springs to quickly open or close.The uncomplicated design of RCE-SR makes it well-functioning unit with high operational safety and a minimum maintenance.


High safety demands in Bangkok’s new subway
Today, tunnels are a normal feature of the infrastructure. A number of tunnel accidents in the world has sharpened the safety demands.

One of the most important questions is how to prevent the spreading of fire and smoke. Quick and safe operation of the fire dampers is decisive in an emergency situation in order to improve personal safety and assist the rescue party in their work.

Howden Calidair in England, the selected supplier for a large tunnel project in Bangkok, has chosen RCE-SR for the operation of their fire damper.

The three most important factors in the specification were:

The actuator should be electric and have spring return as a safety function-i.e. open or close in case of a power loss.

The actuator should work at an ambient temperature of +250℃ for one hour.

The maximum running time from open to closed valve should be 10 or 20 seconds.

RCE-SR met the demands as well as the keen competition.
